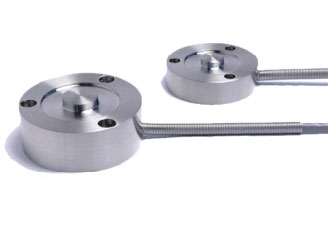

美國transcell 傳感器LBC LOAD CELLS
DIMENSIONS (INCHES) |
|
MODEL | CAPACITY
LBS. | D
DIA. | D1
DIA. | H | H1 | BUTTON
RADIUS | A
CAP
SCRE | C
BOLT
CIRCLE | NATURAL
RINGING
FREQUENCY
HZ | DEFLECTION
INCHES | WT.
OZS. | LBC-100A | 100 | .21 | 1.000 | .40 | .05 | 2.0 | #1 | .750 | 25,000 | .001 | 1.0 | LBC-100 | 100 | .32 | 1.240 | .40 | .07 | 2.0 | #2 | 1.000 | 25,000 | .001 | 1.2 | LBC-250 | 250 | .32 | 1.240 | .40 | .07 | 2.0 | #2 | 1.000 | 25,000 | .001 | 1.2 | LBC-500 | 500 | .32 | 1.240 | .40 | .07 | 2.0 | #2 | 1.000 | 28,000 | .001 | 1.2 | LBC-750 | 750 | .32 | 1.240 | .40 | .07 | 2.0 | #2 | 1.000 | 28,000 | .001 | 1.2 | LBC-1K | 1,000 | .32 | 1.240 | .40 | .07 | 2.0 | #2 | 1.000. | 32,000 | .001 | 1.3 | LBC-2K | 2,000 | .32 | 1.240 | .40 | .07 | 2.0 | #2 | 1.000 | 32,000 | .001 | 1.3 | LBC-3K | 3,000 | .45 | 1.490 | .62 | .08 | 4.0 | #4 | 1.250 | 28,000 | .002 | 3.0 | LBC-5K | 5,000 | .45 | 1.490 | .62 | .08 | 4.0 | #4 | 1.250 | 22,000 | .002 | 3.0 | LBC-10K | 10,000 | .45 | 1.490 | .62 | .08 | 4.0 | #4 | 1.250 | 24,000 | .002 | 3.0 | LBC-15K | 15,000 | .60 | 1.990 | 1.00 | .12 | 6.0 | #6 | 1.625 | 20,000 | .002 | 8.0 | LBC-20K | 20,000 | .60 | 1.990 | 1.00 | .12 | 6.0 | #6 | 1.625 | 20,000 | .002 | 9.0 | LBC-30K | 30,000 | .60 | 1.990 | 1.00 | .12 | 6.0 | #6 | 1.625 | 15,500 | .002 | 9.0 | LBC-50K | 50,000 | .80 | 2.990 | 1.50 | .18 | 6.0 | #6 | 2.375 | 10,000 | .003 | 33.0 |
|
